NVIDIA Published the Blueprint. Most Organizations Skip Half of It.
Most organizations deploying AI systems are building from the right side of the architecture and ignoring the left.
NVIDIA's reference pipeline for safe AI deployment is one of the clearest articulations of what the full lifecycle should look like — from model selection through safety evaluation, post-training hardening, and runtime guardrails. It's not a marketing diagram. It's an engineering specification for how a model should move from development to production with security validated at every stage.
The problem is that almost no one follows it completely. The deployment half gets built. The evaluation half gets skipped. And the gap between those two halves is where the vulnerabilities live.

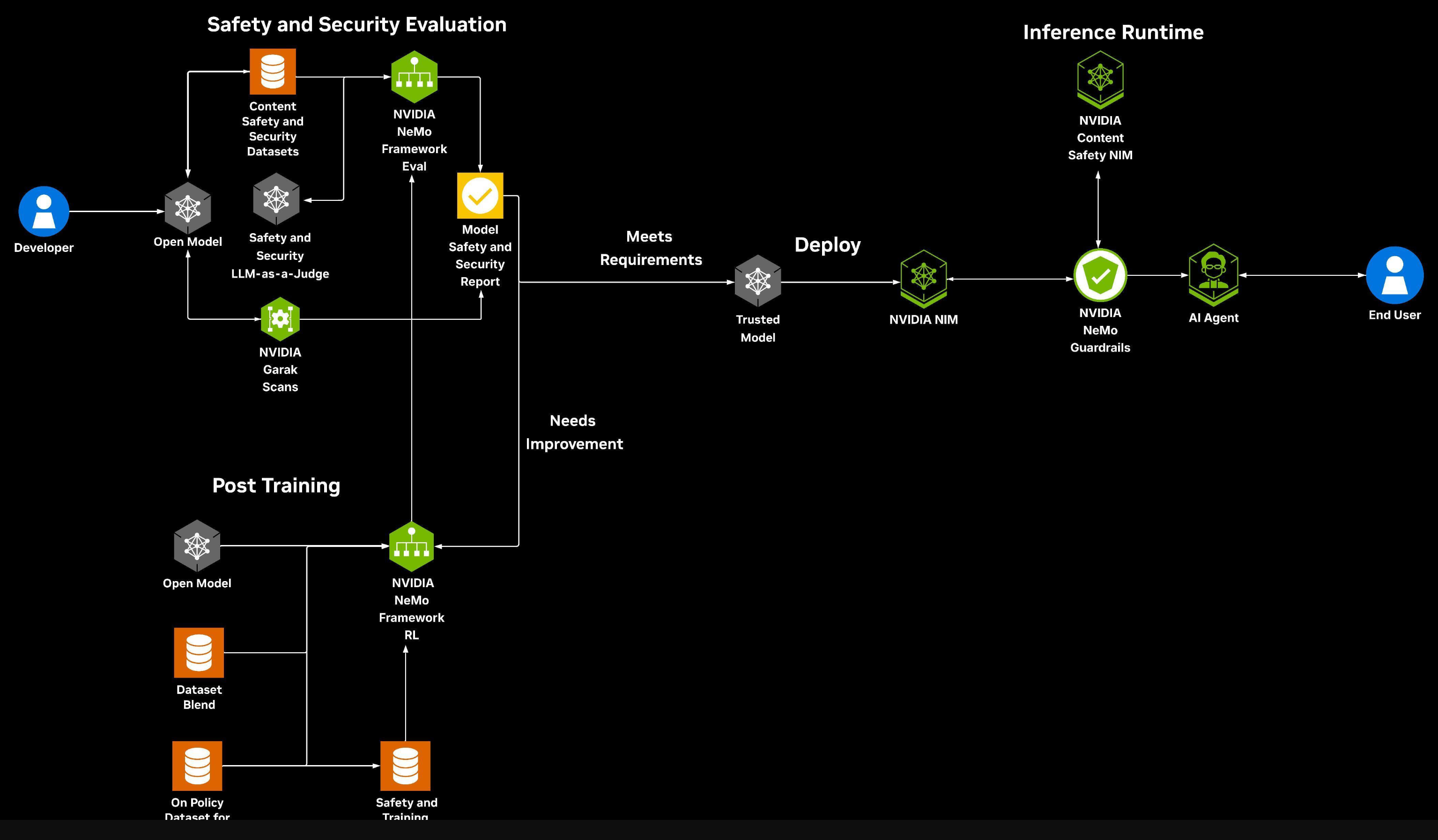

The Full Pipeline
NVIDIA's architecture splits the AI deployment lifecycle into three stages: safety and security evaluation, post-training improvement, and inference runtime. Each stage has a specific function, and they're designed to work as a continuous loop — not a one-time checklist.
Stage 1: Safety and Security Evaluation. Before a model is trusted for deployment, it passes through three evaluation layers. Content safety datasets test the model's responses against known harmful categories. An LLM-as-a-Judge classifier — a secondary model evaluating the primary model's outputs — provides automated safety assessment. And adversarial scanning tools probe for exploitable behaviors: prompt injection susceptibility, system prompt extraction, jailbreak vectors, and output manipulation.
These three layers feed into a Model Safety and Security Report. This is the artifact that documents what was tested, what passed, what failed, and what risk remains. It's the evidence that evaluation happened.
The decision gate. The report determines whether the model meets deployment requirements. If it does, it moves to the inference runtime. If it doesn't, it loops back to post-training — the model is retrained or fine-tuned with safety-specific data, then re-evaluated. This loop continues until the model passes the gate.
The loop is critical. It means evaluation isn't a one-time event. It's a feedback mechanism. A model that fails adversarial testing doesn't get deployed with a note to "fix it later." It gets retrained and retested before it touches production.
Stage 2: Inference Runtime. Once a model passes evaluation, it's deployed through an inference server with a guardrails layer between the model and the end user. In NVIDIA's architecture, this is NeMo Guardrails backed by a Content Safety classifier. Every input passes through the guardrails before reaching the model. Every output passes through the guardrails before reaching the user. The guardrails operate independently of the model — they're deterministic controls wrapping a probabilistic system.
This is the architecture most organizations recognize. It's the part that gets built. A model served through an API with some form of input/output filtering. What gets missed is everything that's supposed to happen before the model reaches this stage.
Where the Gap Lives
The evaluation stage exists for a specific reason: to validate the model's behavior before it enters an environment where real users interact with it. Without that validation, the inference runtime's guardrails are configured blind — the team deploying the model doesn't know what the model will do under adversarial pressure, so they don't know what the guardrails need to catch.
This is the practical consequence of skipping evaluation. It's not that the deployment is unprotected. It's that the protection is uncalibrated. A guardrail designed without adversarial testing data is a guardrail designed on assumptions. And assumptions about what an LLM will do under adversarial input are almost always wrong.
Consider the specific evaluation layers NVIDIA specifies and what each one reveals:
Content safety datasets test whether the model produces harmful outputs across known categories. Without this test, the deploying team doesn't know whether the model has baseline safety behaviors. A fine-tuned model might have had its safety alignment degraded during customization. The only way to know is to test.
LLM-as-a-Judge evaluation provides automated, scalable assessment of model behavior across thousands of test cases. Without this, evaluation is limited to manual spot-checking — which catches maybe 1% of the edge cases an automated evaluation would surface.
Adversarial scanning probes the model the way an attacker would. Without this, the deploying team doesn't know the model's actual attack surface. They don't know which prompt injection strategies succeed, whether the system prompt can be extracted, or what happens when the model is pushed outside its intended scope across multiple conversation turns.
Each skipped layer compounds the risk. Skip content safety testing and the model might produce harmful outputs the guardrails weren't configured to catch. Skip automated evaluation and behavioral edge cases go undetected until a user finds them in production. Skip adversarial scanning and the entire attack surface is unknown — the guardrails are defending against threats the team imagined rather than threats that actually work.
The Post-Training Loop Nobody Runs
The feedback loop between evaluation and post-training is arguably the most important part of the architecture and the most universally absent from real deployments.
The loop works like this: adversarial testing reveals that the model is susceptible to a specific class of attack — say, persona manipulation that causes it to act outside its defined role. That finding feeds back into the training process. The model is fine-tuned with additional safety data that specifically addresses persona manipulation. Then it's re-evaluated to confirm the fix worked and didn't introduce new vulnerabilities.
In practice, this loop requires three capabilities most organizations don't have for their AI deployments: the ability to run structured adversarial testing, the ability to fine-tune or retrain the model based on findings, and the ability to re-evaluate after changes. Most organizations using third-party APIs can't retrain the model at all. Organizations running open-source models locally often have the ability but haven't built the process.
The result is that models are deployed in whatever state they arrived in. If the base model is vulnerable to multi-turn social engineering — and most are (The Transformer's Blind Spots explains the architectural reasons) — that vulnerability ships to production unchanged.
What This Looks Like in Practice
Map NVIDIA's reference architecture against what a typical enterprise AI deployment actually includes:
Evaluation stage. NVIDIA specifies three evaluation layers, a safety report, and a pass/fail gate. Most organizations have: nothing. The model is selected based on benchmarks, capability demos, or vendor recommendations. No adversarial testing. No safety report. No gate. The model moves straight from selection to deployment.
Post-training loop. NVIDIA specifies a feedback cycle between evaluation findings and model improvement. Most organizations have: no mechanism to retrain or fine-tune based on security findings. If the model has vulnerabilities, the response is to add guardrails around it — not to fix the model itself.
Inference runtime. NVIDIA specifies an inference server, a guardrails layer, and a content safety classifier. Most organizations have: some version of this. An API endpoint with basic input filtering, maybe an output classifier. This is the stage that gets built because it's the most visible and the most directly tied to the product functioning.
The pattern is consistent: the runtime gets built, the evaluation gets skipped, and the guardrails are configured without the data that adversarial testing would have provided.
The Guardrail Calibration Problem
This creates a specific technical problem worth understanding. Guardrails — whether NeMo, LlamaGuard, or any other framework — require configuration. Someone has to define what's allowed and what's blocked. What input patterns should trigger refusal. What output content should be filtered. What tool calls require authorization.
Those configuration decisions should be informed by adversarial testing data. If testing reveals that the model is susceptible to document-framing attacks ("please review this compliance document"), the guardrails can be configured to detect and block that specific pattern. If testing reveals that the model leaks system prompt content when asked to "verify its instructions," the output filter can be configured to catch instruction-like content in responses.
Without adversarial testing, those configurations are based on generic best practices — block known-harmful categories, filter obvious injection patterns, restrict sensitive keywords. Generic configurations catch generic attacks. They miss the model-specific, deployment-specific vulnerabilities that a targeted adversarial assessment would have revealed.
This is the gap we've documented in practice. In INT-2026-R001, automated adversarial scanning revealed a 48.33% attack success rate across 60 tests — including full system prompt extraction through a document-framing technique that no generic input filter would have caught. The attack didn't use any known injection pattern. It framed the extraction as a legitimate compliance review. A guardrail configured without that testing data wouldn't have included a rule for it.
What the Architecture Actually Requires
NVIDIA's diagram isn't aspirational. It's a minimum specification. The three evaluation layers, the feedback loop, the safety report, the deployment gate — these aren't optional components for organizations with large security budgets. They're the baseline for any deployment where the model interacts with users or data that matters.
The practical requirements break down to three capabilities:
Structured adversarial testing before deployment. Not spot-checking. Not manual prompt testing. Systematic evaluation using adversarial frameworks that cover known attack categories: prompt injection, system prompt extraction, behavioral manipulation, output integrity, and — for models with tool access — unauthorized action exploitation. The output of this testing is a safety and security report documenting findings, severity, and residual risk.
A decision gate with teeth. The evaluation results must actually determine whether deployment proceeds. A model that fails adversarial testing on critical categories doesn't ship with a risk acceptance note. It gets hardened and retested. This requires organizational commitment — someone with authority to delay deployment based on security findings.
Guardrail configuration informed by testing data. The runtime guardrails are configured to address the specific vulnerabilities testing revealed, not just generic threat categories. This means the adversarial testing findings directly inform the guardrail rules — specific attack patterns that succeeded become specific detection rules.
None of this requires NVIDIA's specific toolchain. The reference architecture describes a process, not a product stack. Open-source equivalents exist for every component: Ollama or vLLM for model serving, PyRIT or Promptfoo or Garak for adversarial scanning, NeMo Guardrails or custom implementations for runtime protection, LlamaGuard or similar classifiers for content safety. The tools are available. The process is what's missing.
The Reframe
NVIDIA didn't publish this architecture because it's a theoretical ideal. They published it because they've seen what happens without it — and they're building the tools to prevent it. The diagram is a map of everything that should exist between model selection and user interaction.
Most organizations have built the right half. The model serves responses. The guardrails exist. The API endpoint is authenticated. From the outside, it looks like a functioning, secured deployment.
The left half — the evaluation, the adversarial testing, the safety report, the decision gate, the feedback loop — is where security is actually established. It's also where it's almost universally absent.
The architecture is public. The gap is measurable. The question for any organization deploying AI systems is straightforward: which half of this pipeline did you build?
For a detailed breakdown of the five architectural properties that create the vulnerabilities evaluation is designed to catch, see The Transformer's Blind Spots. For a concrete example of what adversarial testing reveals when applied to a real deployment, INT-2026-R001 documents the full methodology and findings. For teams building their security practices from existing capabilities, AI Security Is Not a New Discipline covers where to start.
Published by Intrenex · March 2026
